Product Overview
This 3.7kW portable Mode 2 EV charger is designed for safe, flexible, and efficient AC charging of electric and plug-in hybrid vehicles. Based on the EVX03B platform, it integrates an IC-CPD control and protection device inside the cable, ensuring full compliance with IEC 62752:2024 safety standards.
With adjustable charging current from 6A to 16A, this charger allows users to match the charging power to different household power supplies, reducing the risk of overload while maximizing charging efficiency. The compact control box and lightweight design make it ideal for daily home use as well as mobile and emergency charging scenarios.

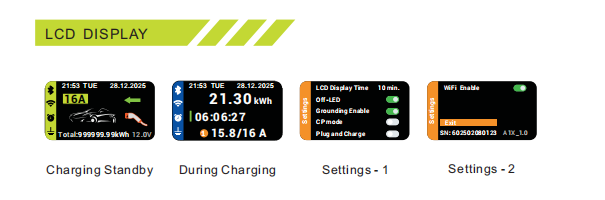

A 1.47-inch LCD screen clearly displays charging status, current, voltage, power, energy consumption, and charging time, allowing users to monitor the charging process in real time. The charger also supports delay charging and appointment charging, helping users take advantage of off-peak electricity pricing.
Key Features
Smart LCD monitoring system
Adjustable charging current
Delay and appointment charging
Low standby power consumption
Compact and portable design
Product Model: EVX03B – Specifications
| Category | Item | Specification |
|---|
| Electrical Parameters | Input / Output Voltage | AC 110V / 230V |
| Input Frequency | 50 / 60 Hz |
| Max. Output Power | 1-Phase up to 3.68 kW (230V, 16A) |
| Max. Output Current | 16A for 1-Phase |
| Standard | EN IEC 62752:2024 |
| Certificate | CE, RoHS |
| Protection | Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Over Load Protection | Yes |
| Short Circuit Protection | Yes |
| Leakage Protection | Yes |
| Over-Temp Protection | Yes |
| Function & Accessory | LED Indicators | Yes |
| LCD Screen | 1.47-inch |
| RCD | Type A (Type B optional) |
| Current Adjustment | Yes |
| WiFi / Bluetooth | Optional |
| Relay Adhesion Detection | Yes |
| RFID Manageable | No |
| Working Environment | Protection Degree | IP67 |
| Operation Temperature | -30℃ ~ +55℃ |
| Relative Humidity | ≤95% RH |
| Operating Elevation Limit | ≤2000 m |
| Cooling | Natural Air Cooling |
| Standby Power Consumption | < 1 W |
| Mechanical Parameters | Charging Cable | 5 m (Standard configuration) |
| Control Box | H × W × D = 195 × 91 × 49 mm |
| Weight | ≤ 3.0 kg |
| Colour | Black |
| Material | PC (Flame retardant, UV resistant) |
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
